High-performance Multilayer Fluorine Tube(REF5)
Features
Biomass products are used for the softnylon in outer layer.
Fluorine resin being arranged for inner layer, it is superior in chemical resistance.
Being superior in smooth inside the tube, it can reduce stagnation of fluid.
Soft nylon resin being arranged for outer layer, it is flexible and suitable for piping for the moving part.
The tube is translucent so that internal fluid can be seen.
Not plasticizer being included, it prevents from being thinner or hardening.
Please contact us regarding compliance with the positive list system in Japan.
Download
Specifications
Material
Nylon elastomer ＋ fluorocarbon resin(FEP)
Working temperature range
-20℃～+60℃（Not to be frozen）
Size
Model No.
Outside×Inside Dia
Standard length of roll for supply
Color
No symbol
“A”symbol
“B”symbol
REF5 - 4×2
4×2
20、100
REF5 - 4×2.5
4×2.5
REF5 - 6×4
6×4
REF5 - 8×5
8×5
REF5 - 8×6
8×6
REF5 - 10×7
10×7
REF5 - 10×8
10×8
REF5 - 12×9
12×9
REF5 - 16×13
16×13
20、50
REF5 - 1/8-3.18×2.25
3.18×2.25
20、100
REF5 - 3/16-4.76×3.48
4.76×3.48
REF5 - 1/4-6.35×4.57
6.35×4.57
REF5 - 5/16-7.94×5.9
7.94×5.9
REF5 - 3/8-9.53×6.99
9.53×6.99
REF5 - 1/2-12.7×9.56
12.7×9.56
REF5 - 5/8-15.88×12.7
15.88×12.7
20、50
High-performance Multilayer Fluorine Tube[Antistatic Type] (REF5AS)
Features
Biomass products are used for the softnylon in outer layer.
Fluorine resin being arranged for inner layer, it is superior in chemicalresistance.
Being superior in smooth inside the tube, it can reduce stagnation of fluid.
The soft nylon antistatic resin of outer layer prevents the tube from being attached the foreign material by static electricity. (Resistivity α×108 ～109 Ω・cm)
No reducing of antistatic effect by the tube abrasion.
The tube is translucent so that internal fluid can be seen.
Not plasticizer being included, it prevents from being thinner or hardening.
Download
Specifications
Material
Antistatic Nylon elastomer ＋ fluorocarbon resin(FEP)
Working temperature range
-20℃～+60℃（Not to be frozen）
Size
Model No.
Outside×Inside Dia
Standard length of roll for supply
Color
Clear
REF5AS - 6×4
6×4
20、100
REF5AS - 8×6
8×6
REF5AS - 10×8
10×8

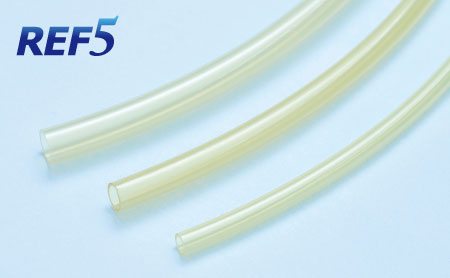

High-performance Multilayer Fluorine Tube [UV Shield Type]（REF5UV）
Features
Biomass products are used for the softnylon in outer layer.
Fluorine resin being arranged for inner layer, it is superior in chemical resistance.
Being superior in smooth inside the tube, it can reduce stagnation of fluid.
The outer layer is made of soft nylon resin with UV shield, which prevents UV rays from passing through.(UV shield wavelength:240~405nm)
It may not be suitable depending on various conditions such as the light absorption wavelength of the fluid or the light irradiation wavelength of the UV lamp, so please conduct a performance test before use.
The tube is translucent so that internal fluid can be seen.
Not plasticizer being included, it prevents from being thinner or hardening.
Download
Specifications
Material
UV-shield Nylon elastomer + fluorocarbon resin(FEP)
Working temperature range
-20℃～+60℃（Not to be frozen）
Size
Model No.
Outside×Inside Dia
Standard length of roll for supply
Color
Clear
REF5UV - 6×4
6×4
20、100
REF5UV - 8×6
8×6
REF5UV - 10×8
10×8
Flexible Fluorine Tube(FES)
Features
Easy to bend and hard to break, suitable for piping in narrow space.
Because it is a perfluoro-based fluororesin, it has high solvent resistance and is resistant to most chemicals.
Flame retardance.( Equivalent to V-0 that the UL94 standard.)
The tube is more transparent than standard PTFE so that internal fluid can be seen.
Complies with Food Sanitation Law. (Ministry of Health, Labour and Welfare Notification No. 370)
A variety of colors are available for easy identification and management.
Please contact us regarding compliance with the positive list system in Japan.
Download
Specifications
Material
Tetrafluoroethylene resin（PTFE）
Working temperature range
-40℃～＋260℃（Not to be frozen）
Size
Model No.
Outside×Inside Dia
Standard length of roll for supply
Color
Translucent
Black
Red
Blue
Yellow
Green
FES-4×2
4×2
10、20、50
FES-4×2.5
4×2.5
FES-6×3
6×3
FES-6×4
6×4
FES-8×5
8×5
FES-8×6
8×6
FES-10×7
10×7
10、20
FES-10×7.5
10×7.5
FES-12×9
12×9
Fluorine Resin Tubes(FE)
Features
Excellent in cold hardiness and heatproof. (-65°C~+200°C)
Superior in chemical resistance.
Excellent in weatherability and corrosion resistance.
Flame retardance.( Equivalent to V-0 that the UL94 standard.)
The interior surface of the tube being smooth and inert, no materials attached to it.
Translucent tube enables to confirm the internal fluid.
Please contact us regarding compliance with the positive list system in Japan.
Download
Specifications
Material
Tetrafluoroethylene-Hexafluoropropylene copolymerization(FEP)
Working temperature range
Air・Oil： -65°C～+200°C
Size
Model No.
Outside×Inside Dia
Standard length of roll for supply
Color
Clear
FE-04-2.5
4×2.5
20、100
FE-04
4×2
FE-06
6×4
FE-08
8×6
FE-10
10×8
FE-12
12×10
