PLASTIC TUBES

Urethane Coil Tubes(UK)

ウレタンコイルチューブ UK

Features

  • U-Flex(U-9500)series being processed coil-shaped, it is superior for flexibility and no force for the connected part.
  • Suitable for flexible piping, it is not dangled at shrinking.
  • The multi-type(2 or 3 cores)enables the tube to be used for multi-corepiping.
  • Ether polyurethane enables the tube to be used for water piping.
  • Color arrangement selected at your, the identification for it can be made easily.
  • We customize the tube on your request for others.

Download

Specifications

Material
Ether type TPU

Size

Model No. Outside×Inside Dia
(mm)
Coil Size
(mm)
No.of.Pcs Color
Pure White
(PW)
Black

Natural
(N)
Clear Blue
(CBU)
Red
(R)
Blue
(BU)
Yellow
(Y)
Green
(G)
Orange
(O)
UK-401 4×2 200 1
UK-402 4×2 200 2
UK-403 4×2 200 3
UK-601 6×4 250 1
UK-602 6×4 250 2
UK-603 6×4 250 3
UK-801 8×5 300 1
UK-802 8×5 300 2
UK-803 8×5 300 3

:Standard :Production on order

For basic performance such as pressure resistance, refer to the description page of the material tube.

Cranked Tube(CT)

クランクチューブ CT

Features

  • The tube itself being bent, leakage or liquid pooling for the elbow fitting reduce.
  • It eliminates the piping space, working hours and cost as well.
  • U-shaped 3D processing can be done.
  • We customize the tube on your request for others.
  • Please contact us for the material tube and shape.

Download

Coil-Shaped Tubes (KX-1200)

コイリングチューブ KX-1200

Features

  • We used amidflex(AX-1200) series, which are biomass products.
  • Amidflex(AX-1200)series being processed in coil-shaped, it is superior for returning back to the original shape.
  • The tube having two straight line parts at fixed length for the both ends, it is easy for piping and elastic smoothly as well.
  • Suitable for the moving part such as compressor piping, pneumatic cutter, spray gun, air gun and others.
  • We customize the tube on your request for others.

Download

Specifications

Material
Polyamide 11

Size

Model No. Outside×Inside Dia
(mm)
Coil Size
(mm)
Color
NaturalWhite
(N)
Black
(B)
Red

Blue
(BU)
Yellow
(Y)
Green
(G)
KX-1206 6×4 250
KX-1208 8×6 240
KX-1210 10×7.5 290
KX-1212 12×9.2 275

:Standard :Production on order

For basic performance such as pressure resistance, refer to the description page of the material tube.

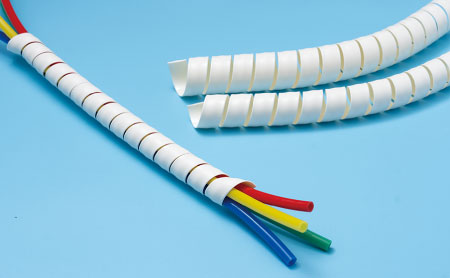

Spiral Tubes(SX)

スパイラルチューブ SX

Features

  • The spiral tubes are used for the binding of plastic tubes or wires, or the protection from external damages.

Download

Size

Model No. Binding Dia
(mm)
Length of Roll
(m)
Color
Natural
(N)
SX-0604 4~8 100
SX-0806 6~12 100
SX-1209 9~18 50
SX-1815 15~30 50
SX-2420 20~40 25
SX-2925 25~50 20

:Standard
